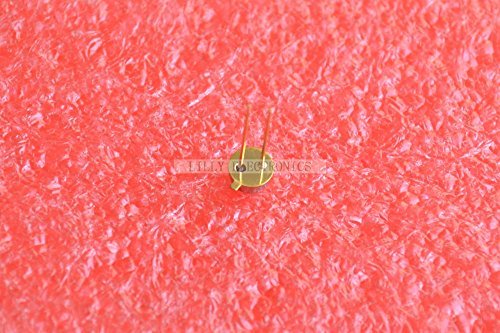

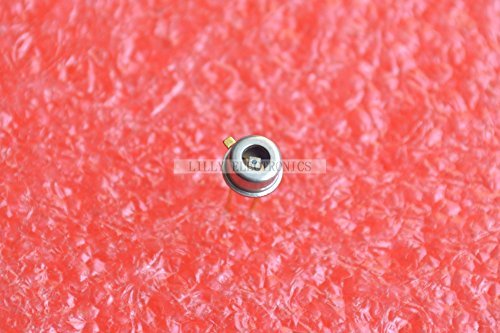

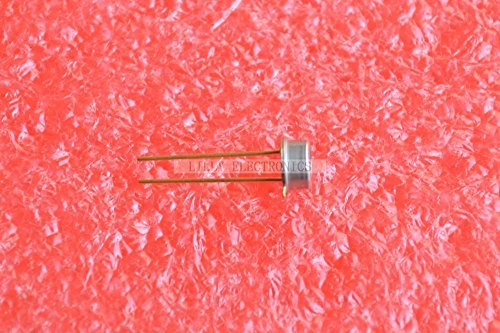

APD/Avalanche Photo Diode 905nm AD500-9 TO52S3/Laser Rangefinder use
Product details
| Management number | 250268278 | Release Date | 2026/09/17 | List Price | US$14.76 | Model Number | 250268278 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: Active Area: 0,2mm? Dimensional outline: ¦µ0,5mm Window material: clear glass Operating temperature: -40- +100 ¡ãC Storage temperature: -55- +125 ¡ãC Spectral Responsivity (A/W): min. 55 (905 nm, at M=100) typ. 60 Dark current (nA) (at M=100): typ. 0.5 - 1 max. 5 Breakdown voltage (V) at ID = 2 ¦ÌA (V): 160 - 240 * Capacitance (pF) at M=100: 1.2 Rise time (ns) at M=100: 0.55 Temp. coefficient Ubr (V/K): typ. 1,55 Cut-off frequency (GHz)(-3 dB): 0.5 N.E.P (w/Hz ?) (at M=100): 2*10-14 Optimum Gain: 50 - 60 Max. Gain: > 200 Excess Noise factor at M=100: 2,5 Excess Noise index at M=100: 0,2 Noise current at M=100 (pA/Hz?): typ. 1 Application Hints: Current should be limited by a protecting resistor or current limiting - IC inside the power supply. Use of low noise read-out -IC. For high gain applications bias voltage should be temperature compensated. For low light level applications, blocking of ambient light should be used. Package: 1X APD/Avalanche Photo Diode AD500-9 TO52S3/Laser Range Finder Use
- For DIY/LAB/TEST
- APD/Avalanche Photo Diode
- 905nm AD500-9
- TO52S3/Laser Rangefinder use
| ASIN | B00KXQJC1Y |
|---|---|
| Manufacturer | Blazer |
| Item model number | LYSB00KXQJC1Y-ELECTRNCS |
